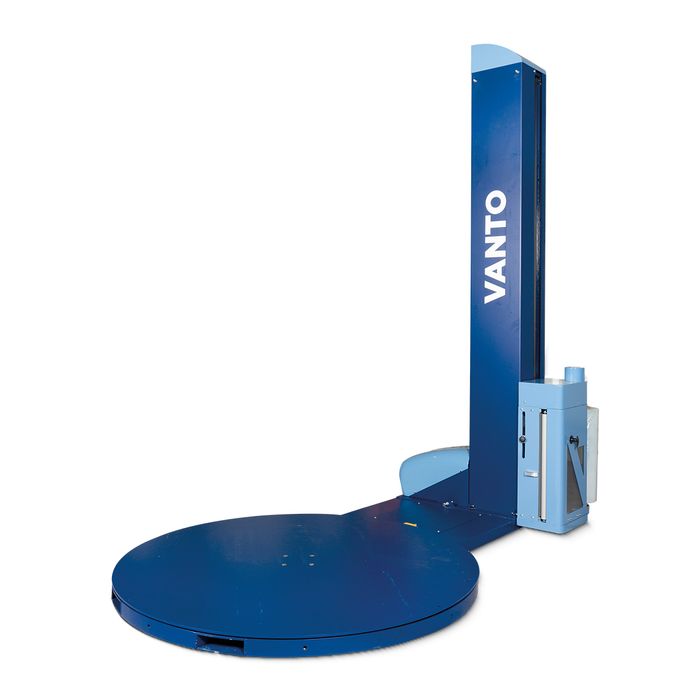

VANTO VW-230 SEMI-AUTO PALLET WRAPPER
Call for Price
Need Help ?
Take your operations to a new level with the VANTO VW-230 semi-automated pallet wrapper. The high-performance wrapping head will slash film consumption and the automatic film-cut off will have your operators grinning!
Ideal For:
• Medium to large-size distribution or storage centres
• Companies seeking to reduce packaging costs and improve labour efficiency
• Companies seeking to reduce health and safety risks
• Wrapping regular or irregular-shaped pallets
Features:
• Up to 300% stretch due to the high-performance motorised wrapping head
• Simple touch-pad controls, with memory mode to save settings
• Automatic and Manual wrapping modes
• 3 Wrapping Cycles: Wrap up and down, Wrap up only, Top Sheet function.
• Adjustable turntable speed, film force and film carriage speed
• Adjustable top, middle and bottom wrap counts for additional load stability
• Soft-start turntable to ensure load remains stable
• Powered film head will pre-stretch film at 230% or 300%, using less film and improving load stability.
• No-Thread film loading
• Automatic Film Cut Off at end of cycle
• Photoelectric Sensor for pallet height detection (clear film. Black Film available as option)
Options:
• Photoelectric sensor for dark coloured goods/black film.
• Loading Ramp
• 1650mm diameter Turntable (extra large loads)
• 2600mm wrapping height (extra high loads)
• Integrated pallet scales and digital monitor
Specifications:
Ideal For:
• Medium to large-size distribution or storage centres
• Companies seeking to reduce packaging costs and improve labour efficiency
• Companies seeking to reduce health and safety risks
• Wrapping regular or irregular-shaped pallets
Features:
• Up to 300% stretch due to the high-performance motorised wrapping head
• Simple touch-pad controls, with memory mode to save settings
• Automatic and Manual wrapping modes
• 3 Wrapping Cycles: Wrap up and down, Wrap up only, Top Sheet function.
• Adjustable turntable speed, film force and film carriage speed
• Adjustable top, middle and bottom wrap counts for additional load stability
• Soft-start turntable to ensure load remains stable
• Powered film head will pre-stretch film at 230% or 300%, using less film and improving load stability.
• No-Thread film loading
• Automatic Film Cut Off at end of cycle
• Photoelectric Sensor for pallet height detection (clear film. Black Film available as option)
Options:
• Photoelectric sensor for dark coloured goods/black film.
• Loading Ramp
• 1650mm diameter Turntable (extra large loads)
• 2600mm wrapping height (extra high loads)
• Integrated pallet scales and digital monitor
Specifications:
| Turntable Diameter | 1500mm |
| Max Load Weight | 2000kg |
| Turntable Speed | 3 - 12 RPM |
| Max Wrapping Height | 2200mm |
| Power Supply | Single phase 240v 50Hz |
| Machine Dimensions | 2490mm(L) x 1500mm(W) x 2565mm(H) |
Price Chart
-
46.12300VANTO® VW-230 Pallet Wrapper 2.2m, 1.5m/2T
Call For PriceStock Level:Call to confirmUnit Quantity Price EACH Call for PriceNote: All prices exclude 10% GST
-
46.12301VANTO® VW-230 Pallet Wrapper 2.6m, 1.5m/2TCall For PriceStock Level:Call to confirm
Unit Quantity Price EACH Call for PriceNote: All prices exclude 10% GST
